5L Split HVAC Scent Diffuser AC-MAX for Large Commercial Spaces
Split-type HVAC scent diffuser with a 5L fragrance oil bottle, aluminum housing and direct duct connection for shopping malls, banks, airports and large commercial complexes.
Model AC-MAX2,500-3,500 m² coverage5L oil bottleWi-Fi + BluetoothFCC / RoHS / EMC
Product Summary
The AC-MAX is a split-type HVAC scent diffuser built for large indoor commercial interiors. The machine and the fragrance oil tank are separate components, and the unit connects directly to central HVAC ducts so scent is delivered through the building's existing airflow system instead of from a single point in a room. A 5L oil bottle feeds the atomizer, and one unit is rated to cover approximately 2,500-3,500 m² (8,000-10,000 m³ or 25,000-35,000 ft²). The unit runs on DC12V at 48W, consumes 6ml ±5% of fragrance oil per hour and operates below 45dB. Wi-Fi and Bluetooth control cover adjustable working schedules, fragrance intensity and password protection for project management. A silver aluminum body with a net weight of 4.2kg keeps installation on HVAC runs straightforward.
Product Gallery
Key Features
- 2,500-3,500 m² coverage per unit - fewer machines are needed across concourses, lobbies and retail floors.
- 5L fragrance oil capacity - a large oil bottle significantly reduces refill frequency for high-traffic venues.
- Split-type structure - machine and oil tank are separate, enabling direct connection to central HVAC ducts and distribution through existing airflow.
- Wi-Fi and Bluetooth smart control - adjustable working schedules and fragrance intensity, with manual button control and timer scheduling also available.
- Password protection - supports professional project management where multiple staff operate the system.
- Optional airflow sensor - synchronizes scenting with HVAC operation, so fragrance is released together with the air handling system.
- Quiet operation below 45dB - suitable for customer-facing commercial environments.
Technical Specifications
| Model | AC-MAX |
|---|
| Product Type | HVAC scent diffuser, split type |
|---|
| Material | Aluminum body + plastic bottle |
|---|
| Capacity | 5L |
|---|
| Coverage | 2,500-3,500 m² / 8,000-10,000 m³ / 25,000-35,000 ft² |
|---|
| Rated Voltage | DC12V |
|---|
| Power | 48W |
|---|
| Oil Consumption | 6ml ±5% / h |
|---|
| Noise | <45dB |
|---|
| Net Weight | 4.2KG |
|---|
| Gross Weight | 5.2KG |
|---|
| Product Size | L160 x W200 x H160MM |
|---|
| Packing Size | 330 x 320 x 210MM |
|---|
| Color | Silver |
|---|
Certifications
| FCC | Cert. No. ATL20240416326 - FCC Part 15 Subpart B:2023, issued by Shenzhen ATL Testing Technology Co., Ltd. for the USA market |
|---|
| RoHS | Cert. No. ATL20240416327 - RoHS Directive (EU) 2015/863 for the EU market |
|---|
| EMC | Cert. No. ATL20240416325 - EN IEC 55014-1:2021; EN IEC 55014-2:2021; EN IEC 61000-3-2:2019/A1:2021; EN 61000-3-3:2013/A2:2021 for the EU market |
|---|
Models and Options
This page covers the AC-MAX model. Configuration options include the optional airflow sensor for HVAC synchronization, control through the AromaOS app, manual button control, timer scheduling and adjustable scent intensity. Silver is the standard body color. Logo, color and app customization can be arranged as described below.
Materials and Structure

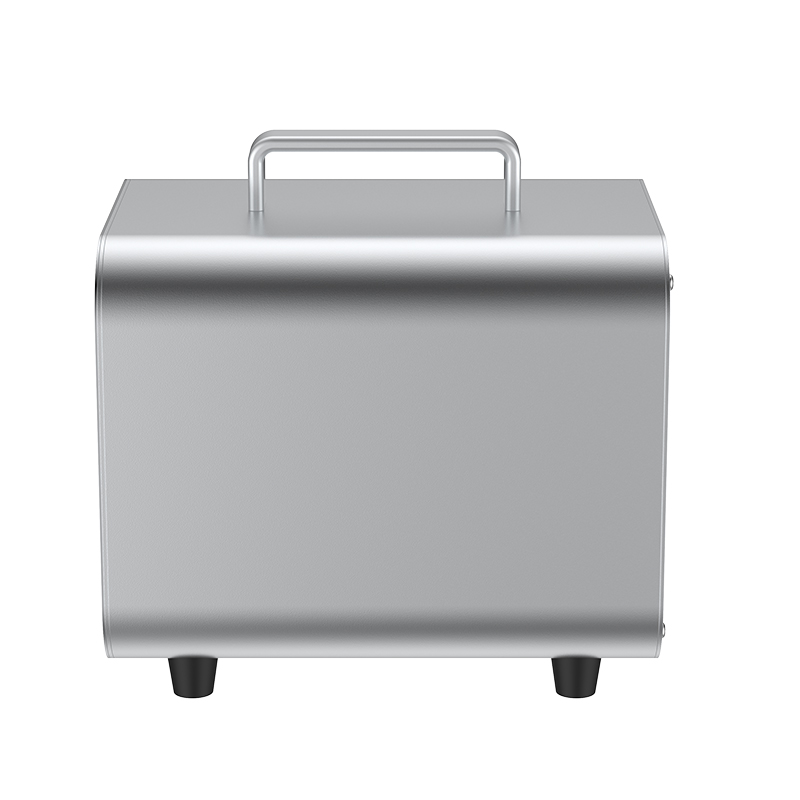

The housing is made of aluminum and the fragrance oil bottle is plastic. The split-type construction separates the machine from the oil tank, which allows the unit to be connected directly to central HVAC ducts. Overall dimensions are L160 x W200 x H160MM, with a net weight of 4.2KG and a gross weight of 5.2KG. Packing size is 330 x 320 x 210MM.
Applications
The AC-MAX is used for indoor scent marketing in public consumer venues including shopping malls, banks and airports, as well as hotels, office buildings and large commercial complexes. It works alongside the AromaOS app. Suitable fragrance oil, a proper installation location, correct power supply and model selection based on actual space size and airflow conditions are required for stable results.
Case Study
A scent marketing company and scenting service provider in the United States has used 30 units of this model for commercial scenting in shopping malls, creating a pleasant fragrance environment and enhancing customer experience. The units have been in service for 5 years, delivering stable and consistent scent coverage, reduced manual maintenance and improved fragrance management efficiency. Reported highlights include strong atomization, stable operation, smart APP control, adjustable scent intensity, low maintenance and easy installation.
Customization
As a manufacturer with a 3,000m² facility, Shenzhen Scentsea Technology Co., Ltd. offers OEM/ODM services that include logo customization, color customization, exclusive mold development, app customization, user manual customization and private label packaging. Fragrance oils can also be supplied with scent selection, bottle labeling and private label packaging. MOQ starts from 1 piece for diffusers, and diffuser samples as well as fragrance oil samples are available for quality verification.
FAQ
How much space can one AC-MAX cover?
Each unit is rated for approximately 2,500-3,500 m², or 8,000-10,000 m³ (25,000-35,000 ft²). Final selection should be based on the actual space size and airflow conditions.
Does the diffuser need a separate machine in every room?
No. The split-type unit connects directly to central HVAC ducts and delivers fragrance through the building's existing airflow system.
How much fragrance oil does it consume?
Oil consumption is 6ml ±5% per hour. Refill frequency depends on the working schedule and fragrance intensity settings.
Can scenting be synchronized with HVAC operation?
Yes. An optional airflow sensor allows scenting to be synchronized with HVAC operation.
How is the AC-MAX controlled?
Wi-Fi and Bluetooth smart control through the AromaOS app, with adjustable working schedules and fragrance intensity, manual button control, timer scheduling and password protection.
Which certifications does it hold?
FCC Part 15 Subpart B:2023 for the USA market, plus RoHS Directive (EU) 2015/863 and EMC standards EN IEC 55014-1:2021 and EN IEC 55014-2:2021 for the EU market.
What is the MOQ and can the unit be customized?
MOQ starts from 1 piece for diffusers. OEM/ODM options include logo, color, app, user manual and private label packaging, plus exclusive mold development.
